AREL 6 SMT

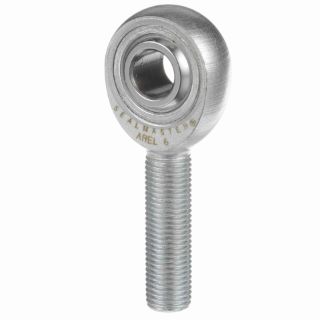

Picture of AREL 6 SMT
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1540600000
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$70.30 / EA

Description

Brand Name

Sealmaster®

Type

3-Piece Precision Grade Extra Capacity

Description

Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
Sealmaster® Bearing Rod End, 3-Piece Precision Grade Extra Capacity, Series: ARE, 3/8 in Bore, 1 in OD, 1/2 in Width, Male UNF Thread, 3/8-24 Dia x 1.219 in L Thread, 1.938 in Center Line Length, 9580 lb Static Load, 350 deg F, Alloy Steel

Application

Aggregate, Cement, Agriculture, Food, HVAC, Metals, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Features

  • 3-piece design rod ends with heat treated alloy steel housing for high static and radial loads
  • 1-piece carbon steel outer race with protective coating for corrosion resistance
  • Alloy steel heat treated and chrome plated ball for wear resistance properties
  • The construction also helps reduce pound-out in applications with high frequency oscillation, vibration or shock loading
  • Left hand external thread
  • 4130 alloy steel heat treated corrosion resistant plating outer

Specifications

Bore Diameter:3/8 in
Center Line Length:1.938 in
Country of Origin:MX
Load Capacity:9580 lb Static
Material:Alloy Steel
Outside Diameter:1 in
Series:ARE
Temperature Rating:350 deg F
Thread Size:3/8-24 Dia x 1.219 in L
Thread Type:Male UNF
Width:1/2 in
