ARM1XQ-4.000-140TC-56C HUB

Name: ARM1XQ-4.000-140TC-56C HUB
Brand: Hub City
SKU: ARM1XQ-4.000-140TC-56C HUB
Availability: OutOfStock

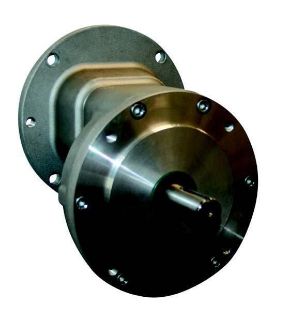

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0270-03311

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Parallel Reducer

Description

Hub City® Helical Ratio Multiplier, Parallel Reducer, Series: ARM1X, 4:1 Gear Ratio, 3.63 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 5/8 in Dia Output, 438 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 511 in-lb Output, 1.909 in Centre Distance, 3/16 x 3/32 in Output Keyway, Synthetic Oil Lubrication, Aluminum, 6.63 in W

Standards

USDA H1 Compliant

Features

Replaces RM1 and RM2 cast iron and aluminum models
Can be used as reducer or increaser
Use between gear drive and motor to gain additional gear reduction
Double lip seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	1.909 in
Dimensions:	6.63 in W
Gear Ratio:	4:1
Horsepower:	3.63 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Output
Lubrication Type:	Synthetic Oil
Material:	Aluminum
Output Maximum Speed:	438 rpm
Output Size:	5/8 in Dia
Output Type:	Shaft
Series:	ARM1X
Torque Rating:	511 in-lb Output
