ARS240118ESB APN

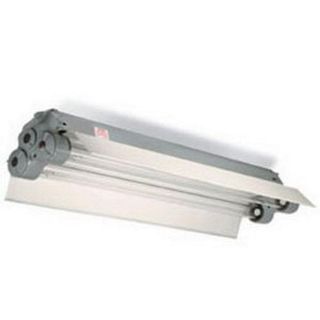

Picture of ARS240118ESB APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
ARS240-118-ESB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

T12

Description

Appleton® UNILETS™ Light Fixture, T12, Series: ARS Series, 120 VAC, Fluorescent Lamp, 40 W Lamp, 2 Lamps, 20000 hr Average Life, Magnetic Ballast, Ceiling Mounting, Aluminum Housing Material, Gray Epoxy Housing Finish, 52-7/16 in L x 15 in W x 8-3/4 in H

Application

For inside paint spray booths, in pharmaceutical firms, paint manufacturing plants, printing plants or any location where ignitable dust, fumes, gases, paint residue and paint powder or corrosive atmospheres

Standards

Class I Division 1 and Division 2 Groups C/D | Class II Division 1and Division 2 Groups E/F/G | Class III | NEC 516-3(b) | NFPA File No. 33 Compliant | UL 844/1598 File No. E10794

Features

  • Factory sealed unit, no external seals required
  • A wide range of ballasts and voltages are available for both domestic and export applications
  • 3-hubs on each end of fixture provide for straight down mounting or at 45 deg to either side, 2 close-up plugs furnished for each end of fixture
  • Explosion proof, impact resistant and heat resistant glass tubes protect lamps
  • Reflectors can easily be removed for replacement or cleaning using only a screwdriver
  • Appleton® EFU fixtures are supplied with class P ballasts, equipped with an automatic thermally activated protective device, offer protection against excessive voltage, internal ballast short-circuiting, inadequate lamp maintece and improper fixture application
  • Non-sparking exterior surfaces for safer operation
  • 3/4 in hub
  • Explosion proof, dust-ignition proof
  • Copper free (4/10 Of 1% maximum) aluminum material
  • Factory sealed

Specifications

Average Life:20000 hr
Ballast Type:Magnetic
Country of Origin:MX
Dimensions:52-7/16 in L x 15 in W x 8-3/4 in H
Housing Finish:Gray Epoxy
Housing Material:Aluminum
Lamp Type:Fluorescent
Lamp Wattage:40 W
Mounting Type:Ceiling
Number of Lamps:2
Series:ARS Series
Voltage Rating:120 VAC
