Actual Product May Vary From Image

AS2052F-06 SMC

Name: AS2052F-06 SMC
Brand: SMC
SKU: AS2052F-06 SMC
Price: 19.25 USD
Availability: InStock

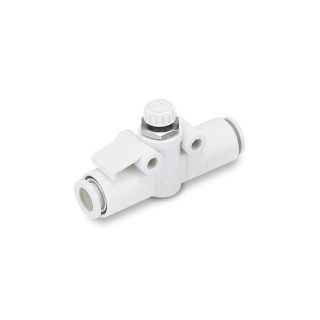

SMC® AS2052F-06 AS Series In-line Speed Controller, 1 MPa Pressure, 290 Lpm Flow Rate, Brass Body

Manufacturer: SMC

Manufacturer part number: AS2052F-06

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
10	10	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$19.25

Qty:

Product Details

Brand Name

SMC®

Type

In-line

Description

SMC®, AS2052F-06, Speed Controller, In-line, Series: AS Series, 6 mm Nominal, 1 MPa Pressure, -5 to 60 deg C, 290 Lpm Flow Rate, Media: Air, Brass Body, Electroless Nickel Plated, 33.2 in H x 15.7 in W x 53.2 in L Dimensions

Standards

RoHS Compliant

Features

In-line, compact, one-touch fittings
Maximum operating pressure is 1 MPa
Applicable tube materials are nylon, soft nylon, polyurethane
Body sizes are M3, M5, 1/8, 1/4, 3/8 and 1/2

Specifications

Body Material:	Brass
Country of Origin:	JP
Dimensions:	33.2 in H x 15.7 in W x 53.2 in L
Finish:	Electroless Nickel Plated
Flow Rate:	290 Lpm
Media:	Air
Nominal Size:	6 mm
Pressure Rating:	1 MPa
Series:	AS Series
Temperature Rating:	-5 to 60 deg C
