Name: AS2211F-01-06 SMC
Brand: SMC
SKU: AS2211F-01-06 SMC
Price: 10.45 USD
Availability: OutOfStock

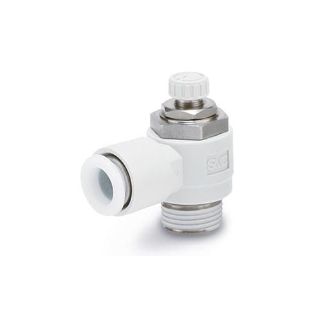

AS2211F-01-06 SMC

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

AS2211F-01-06

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$10.45 / EA

Description

Brand Name

SMC®

Type

Elbow

Description

SMC®, AS2211F-01-06, Speed Controller Valve, Elbow, Series: AS, 6 mm Nominal, 1/8 in Port, 0.1 to 1 MPa Pressure, - 5 to 60 deg C, 230 Lpm Flow Rate, BSPT Port, Media: Air, PBT/Brass Body, NBR/Stainless Steel Softgoods, Electroless Nickel Plated, 35.2 mm H x 26.9 mm L Dimensions

Standards

RoHS Compliant

Features

Speed controller with one-touch fittings
Body sizes are M3, M5, 1/8, 1/4, 3/8, 1/2
Maximum operating pressure 1MPa
Meter in or meter out control
Port sizes are M3, M5, U10/32, 01, 02, 03, 04
Various tube O.D. in both metric and inch

Specifications

Body Material:	PBT/Brass
Country of Origin:	JP
Dimensions:	35.2 mm H x 26.9 mm L
Finish:	Electroless Nickel Plated
Flow Rate:	230 Lpm
Media:	Air
Nominal Size:	6 mm
Port Size:	1/8 in
Port Type:	BSPT
Pressure Rating:	0.1 to 1 MPa
Series:	AS
Softgoods Material:	NBR/Stainless Steel
Temperature Rating:	- 5 to 60 deg C
