Name: AS3201F-03-08 SMC
Brand: SMC
SKU: AS3201F-03-08 SMC
Price: 15.10 USD
Availability: OutOfStock

AS3201F-03-08 SMC

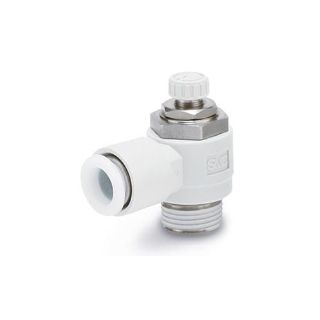

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

AS3201F-03-08

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$15.10 / EA

Description

Brand Name

SMC®

Type

Elbow

Description

SMC®, AS3201F-03-08, Speed Controller Value, Elbow, Series: AS, 8 in Nominal, 3/8 in Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, R Port, Media: Air, PBT/Brass Body, NBR/Stainless Steel Softgoods, Electroless Nickel Plated, 36.4 mm L x 39.9 mm H Dimensions

Standards

RoHS Compliant

Features

Speed controller with one-touch fittings
Body sizes are M3, M5, 1/8, 1/4, 3/8, 1/2
Maximum operating pressure 1MPa
Meter in or meter out control
Port sizes are M3, M5, U10/32, 01, 02, 03, 04
Various tube O.D. in both metric and inch

Specifications

Body Material:	PBT/Brass
Country of Origin:	JP
Dimensions:	36.4 mm L x 39.9 mm H
Finish:	Electroless Nickel Plated
Media:	Air
Nominal Size:	8 in
Port Size:	3/8 in
Port Type:	R
Pressure Rating:	0.1 to 1 MPa
Series:	AS
Softgoods Material:	NBR/Stainless Steel
Temperature Rating:	-5 to 60 deg C
