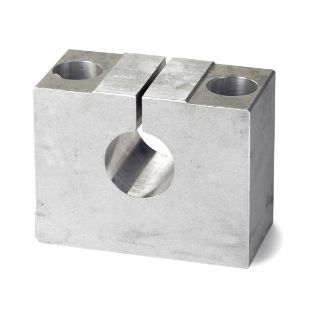

ASBM40 THO

Shaft support blocks are used for end or intermittent support where loads are light and deflection between supports is not a problem. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type Ball Bushing® bearings. Type ASBM shaft blocks, manufactured from high-strength, extruded aluminum, provide either end or intermittent support in applications where loads are designed with a reference edge on one side of the base. This provides a surface parallel to the center of the shaft within +/- 0.025 mm that can be used to simplify shaft alignment.

Thomson® 60 Case® LinearRace® Shaft Support Block, Low Profile Type ASBM, 40 mm Shaft Diameter, 48 mm Width, 88 mm Height, 108 mm Length, For Use With: RoundRail™ 1BA/1NA End-Supported Linear Guide, Aluminum
