ATC-10 BSF

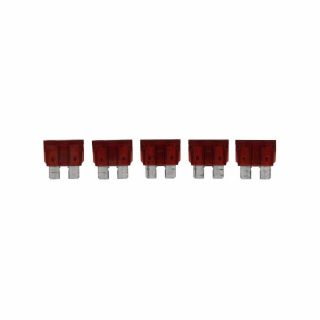

Picture of ATC-10 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
ATC-10
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2.31 / EA

Description

Brand Name

Bussmann

Type

Standard Fast Acting

Alternate Supplier #

Fastenal - 0760218

Description

Automotive blade fuses are the industry standard - used in most domestic and imported cars today. All Bussmann series blade fuses meet or exceed OEM and SAE standards. The easyID indicating blade fuses use LED technology making it easier to spot blown fuses in panels tucked in dark locations.
Bussmann Automotive Fuse, Lead Free, Series: ATC, Indicating/Non-Indicating: Non-Indicating, 10 A, 32 VDC, 1000 A Interrupt, Blade End Terminal, Holder Mount, 0.752 in Length, 0.76 in Width, 0.207 in D, Plastic, Red

Application

Automotive and Low Voltage Control Circuit Applications

Standards

JASO 612 | RoHS Compliant | SAE J1171 | SAE J1284 | UL 248-1 File No. E56412 Guide JFHR2 | UL 94 Flammability Rating | UL Recognized

Features

  • Industry standard color coding for quick identification of amp rating
  • Tin plated zinc terminals for corrosion resistance and enhanced conductivity
  • Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
  • Lead and halogen free

Specifications

Amperage Rating:10 A
Color:Red
Country of Origin:JP
Depth:0.207 in
Element:Single
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:1 kA
Length:0.752 in
Material:Plastic
Mounting Type:Holder
Rejection/Non-Rejection:Non-Rejection
Series:ATC
Terminal Type:Blade
Voltage Rating:32 VDC
Width:0.76 in
