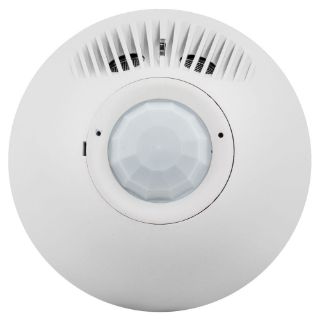

ATD500CRP HWD

Name: ATD500CRP HWD
Brand: Hubbell Wiring Device-Kellems
SKU: ATD500CRP HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

ATD500CRP

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Adaptive Dual Technology Low Voltage

Description

Wiring Device-Kellems H-MOSS® Occupancy Sensor, Adaptive Dual Technology Low Voltage, Series: ATD, 24 VDC, 33 mA, Passive Infrared/Ultrasonic Sensor, 500 sq-ft Coverage, 180 deg Viewing, 8 to 40 min Adaptive, 8 sec Test Time Delay, LED Lamp, 40 kHz Response, Wire Lead Connection, Ceiling Mounting, 32 to 104 deg F, ABS, Off-White, 4-1/2 in Dia x 1-1/2 in H Dimensions

Standards

Features

Minimize the risk of false triggering
Lights turning ON when the space is un-occupied
Offer the best performance for most applications
Office white ABS enclosure blends with ceiling tile
Red LED indicates passive infrared detection and green LED indicates ultrasonic detection
Install and forget operation
Auto-adjusting adaptive technology eliminates manual adjustments
Relay to interface with auxiliary systems such as HVAC
500 sq-ft coverage

Includes

Mounting Base

Specifications

Amperage Rating:	33 mA
Color:	Off-White
Connection Type:	Wire Lead
Country of Origin:	CN
Coverage:	500 sq-ft
Dimensions:	4-1/2 in Dia x 1-1/2 in H
Lamp Type:	LED
Material:	ABS
Mounting Type:	Ceiling
Response Frequency:	40 kHz
Sensor Type:	Passive Infrared/Ultrasonic
Series:	ATD
Temperature Rating:	32 to 104 deg F
Time Delay:	8 to 40 min Adaptive, 8 sec Test
Viewing Angle:	180 deg
Voltage Rating:	24 VDC
