ATP600CRP HWD

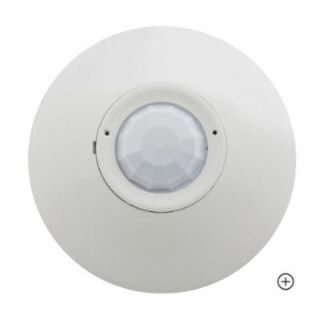

Picture of ATP600CRP HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
ATP600CRP
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Adaptive Dual Technology

Description

Wiring Device-Kellems H-MOSS® Ceiling Mount Occupancy Sensor, Adaptive Dual Technology, 24 VDC, 33 mA, Passive Infrared Sensor, 600 sq-ft Coverage, 360 deg Viewing, 8 to 40 min Adaptive, 8 sec Test Time Delay, LED Lamp, Ceiling Mounting, 32 to 104 deg F, ABS, Off-White, 1-1/2 in H x 4-1/2 in D Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | cULus Listed | UL 244A | ASHRAE 90.1 | CEC Title 24 | UL 94-V-0

Features

  • -20 to 150 deg F storage temperature
  • 0 to 95% non-condensing relative humidity
  • 6000 minimum operating cycles
  • 1 to 1000 fcd ambient light controls
  • 0 to 100% adaptive sensitivity
  • Red LED passive infrared sensing indicators
  • Load is a function of the control unit
  • Indoor dry unless protected by additional means
  • Office white ABS enclosure blends with ceiling tile
  • "Install and Forget" operation
  • Relay to interface with auxiliary systems such as HVAC
  • Auto-adjusting adaptive technology eliminates manual adjustments
  • Polyethylene lens
  • Flame retardant UL94 V-0 ABS housing
  • Normally open and normally closed terminals available

Specifications

Amperage Rating:33 mA
Color:Off-White
Connection Type:Wire Lead
Country of Origin:CN
Coverage:600 sq-ft
Dimensions:1-1/2 in H x 4-1/2 in D
Lamp Type:LED
Material:ABS
Mounting Type:Ceiling
Response Frequency:32 kHz
Sensor Type:Passive Infrared
Series:ATP
Temperature Rating:32 to 104 deg F
Time Delay:8 to 40 min Adaptive, 8 sec Test
Viewing Angle:360 deg
Voltage Rating:24 VDC

Products Specifications

Brand Name
Hubbell Wiring Device-Kellems
Mounting
Screw Mount
Sensing Range
8 to 12 Feet Mounting Height
Sensitivity
Adjustable
Supply Voltage
24V DC
Type
Ceiling and Wall Mount Sensors
