ATQ1/8 FER

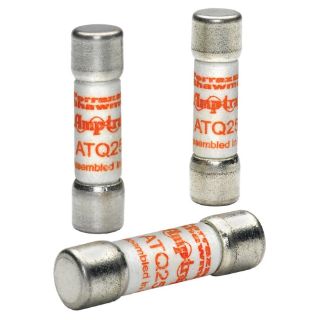

Mersen Amp-Trap® ATQ1/8 Low Voltage Time Delay Fuse, 0.125 A, 500 VAC, 10 kA, Class Midget, Cylindrical Body
Manufacturer: Mersen
Manufacturer part number: ATQ1/8
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$20.14

Product Details

Brand Name

Mersen

Type

Low Voltage

Alternate Supplier #

Grainger - 4ZWZ1

Description

Amp-Trap® ATQ midget time delay fuses are rated a full 500 VAC with 42 A ratings from 1/10 to 30 A. They are an excellent choice for supplemental protection of circuits up to 30 A where the available short circuit current does not exceed 10,000 A. (Not for Branch Circuit Protection).
Mersen Amp-Trap® Time Delay Fuse, Low Voltage, Series: ATQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 0.125 A, 500 VAC, 10 kA Interrupt, Class: Midget, Ferrule Terminal, Clip Mount, Cylindrical Body, Dual Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size

Application

For supplemental protection of lighting, solenoid, motor and transformer circuits applications

Standards

RoHS Compliant | UL File No. E33925 | C22.2 No. 248.14

Features

  • Numerous ratings for a wide variety of applications up to 500 VAC
  • Time-delay (12 sec at 200% rating) for circuits with high inrush current
  • Tin-plated copper contact
  • Can be used with UltraSafe™ fuse holders

Specifications

Amperage Rating:0.125 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cylindrical
Class:Midget
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:10 kA
Material:Fiber
Mounting Type:Clip
Rejection/Non-Rejection:Non-Rejection
Series:ATQ
Terminal Type:Ferrule
Voltage Rating:500 VAC
