AU-0 ILS

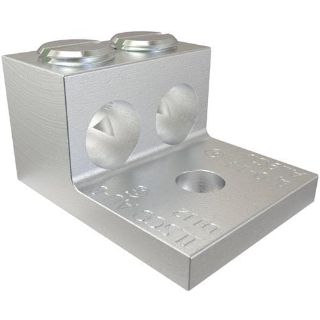

ILSCO® ClearChoice® AU-0 2-Conductor Dual Rated Mechanical Terminal Lug, 14 to 1/0 AWG Aluminum/Copper Conductor, 1/4 in Stud, 2 Bolt Holes, 6061-T6 Aluminum Alloy
Manufacturer: Ilsco
Manufacturer part number: AU-0
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 6 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$4.56

Product Details

Brand Name

ILSCO®

Type

2-Conductor Dual Rated

Description

ILSCO® ClearChoice® Mechanical Terminal Lug, 2-Conductor Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 14 to 1/0 AWG Conductor, 1/4 in Stud, 2 Bolt Holes, 0.8438 in L x 1.125 in W x 0.187 in THK Tongue, Straight Tongue, 2000 VAC, Slotted Hex, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 1.4688 in L x 1.125 in W x 0.794 in H

Application

Terminating Connector Applications

Standards

CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99

Features

  • Manufactured from high strength 6061-T6 aluminum alloy
  • Chamfered wire entry provides ease of installation
  • Suitable for use with either copper or aluminum conductors
  • Mounting hole spacing from side to side, hole to hole is 7/8 in
  • Electro-tin plated provides low contact resistance
  • Ensures reliability for copper or aluminum conductors
  • Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
  • Application versatility
  • 1-stud
  • 17/64 in mounting hole

Specifications

Conductor Size:14 to 1/0 AWG
Conductor Type:Aluminum/Copper
Country of Origin:MX
Dimensions:1.4688 in L x 1.125 in W x 0.794 in H
Finish:Electro-Plated Tin
Material:6061-T6 Aluminum Alloy
Number of Bolt Holes:2
Series:AU Series
Specifications:Slotted Hex
Stud Size:1/4 in
Temperature Rating:90 deg C
Tongue Size:0.8438 in L x 1.125 in W x 0.187 in THK
Tongue Type:Straight
Voltage Rating:2000 VAC
