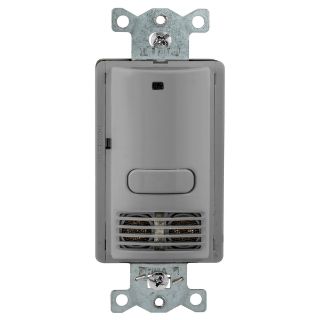

AU2001GY1 HWD

Product Details

Manufacturer part number:
AU2001GY1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Single Circuit

Description

Combines P,R and US technology, minimizing the risk of lights turning ON when the space is unoccupied. Once occupancy is detected by both technologies within the space lights are turned ON, only one technology is necessary to keep the lights ON. Adaptive technology provides better control. Hubbell patented breakthrough in advanced control feature smart microprocessors constantly monitoring the controlled area and adjust the sensitivity and timer based on environmental history.
Wiring Device-Kellems H-MOSS® Wall Switch Vacancy Sensor, Single Circuit, Series: Adaptive, 120/277 VAC, 5 A, 800 W Power, Ultrasonic Sensor, 400 sq-ft Coverage, 4 to 30 min Time Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Wire Lead Connection, Manual On Control Output, Wall Mounting, 32 to 104 deg F, High Impact Plastic, Gray, 1.69 in L x 1.71 in W x 4.13 in H Dimensions

Features

  • Zero arc point switching
  • No minimum load requirement
  • Hard lens (dual technology, passive infrared)
  • Steel mounting strap
  • Built-in photocell with manual super saver mode for daylight harvesting
  • Bi-level switching or dual load control
  • Compatible with most LED and CFL

Specifications

Amperage Rating:5 A
Color:Gray
Connection Type:Wire Lead
Control Output:Manual On
Country of Origin:CN
Coverage:400 sq-ft
Dimensions:1.69 in L x 1.71 in W x 4.13 in H
Lamp Type:Fluorescent/Incandescent
Material:High Impact Plastic
Mounting Type:Wall
Power Rating:800 W
Response Frequency:50/60 Hz
Sensor Type:Ultrasonic
Series:Adaptive
Temperature Rating:32 to 104 deg F
Time Delay:4 to 30 min
Voltage Rating:120/277 VAC
