AU2001I22 HWD

Product Details

Manufacturer part number:
AU2001I22
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

2-Button 2-Circuit

Description

Combines PIR and US technology, minimizing the risk of lights turning on when the space is unoccupied. Once occupancy is detected by both technologies within the space lights are turned ON, only 1-technology is necessary to keep the lights ON. Adaptive technology provides better control. Hubbell® patented breakthrough in advanced control feature smart micro processors constantly monitoring the controlled area and adjust the sensitivity and timer based on environmental history. The optimum choice when performance is paramount.

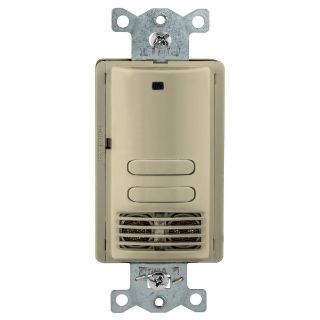

Wiring Device-Kellems Wall Switch Sensor, 2-Button 2-Circuit, Series: AU2000, 120/277 VAC, 5 A, 800/1800 W Power, Vacancy/Ultrasonic Sensor, 400 sq-ft Coverage, 4 to 30 min Time Delay, CFL/Incandescent/LED Lamp, 50/60 Hz Response, Auto On/Manual On Control Output, Wall Mounting, 32 to 104 deg F, Plastic, Ivory, 4.13 in H x 1.71 in W x 1.69 in D Dimensions

Standards

RoHS Compliant | cULus Listed | UL Listed | UL 94-V-5 Flammability Rated

Features

  • Steel mounting strap
  • High impact molded plastics
  • Color matching tamper-resistant lens
  • Selectable auto or manual On operating modes
  • 800 W, incandescent, electronic ballast, 5 A LED, 1/6 hp at 120 VAC and 1800 W electronic ballast, 5 A LED, 1/6 hp at 277 VAC
  • Adaptive dual technology

Specifications

Amperage Rating:5 A
Color:Ivory
Control Output:Auto On/Manual On
Country of Origin:CN
Coverage:400 sq-ft
Dimensions:4.13 in H x 1.71 in W x 1.69 in D
Lamp Type:CFL/Incandescent/LED
Material:Plastic
Mounting Type:Wall
Power Rating:800/1800 W
Response Frequency:50/60 Hz
Sensor Type:Vacancy/Ultrasonic
Series:AU2000
Temperature Rating:32 to 104 deg F
Time Delay:4 to 30 min
Voltage Rating:120/277 VAC
