AXK0515-TV INA

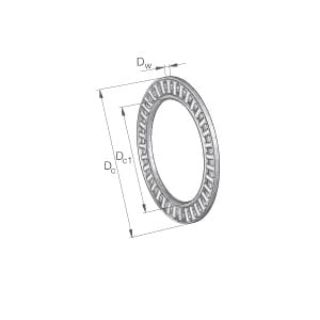

Picture of AXK0515-TV INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
AXK0515-TV
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

INA

Description

INA Axial Needle Roller and Cage Assembly, Series: AXK Series, 5 mm Bore, 15 mm OD, 2 mm Width, For Shaft Diameter: 4 to 160 mm, 4750 N Dynamic/9200 N Static/1070 N Fatigue Load, 20600 rpm Maximum, -20 to 120 deg C

Standards

Meets to DIN 5405-2

Features

Single direction

Specifications

Bore Diameter:5 mm
For Shaft Diameter:4 to 160 mm
Load Capacity:4750 N Dynamic/9200 N Static/1070 N Fatigue
Maximum Speed:20600 rpm
Outside Diameter:15 mm
Series:AXK Series
Temperature Rating:-20 to 120 deg C
Width:2 mm
