AXK110145 INA

Name: AXK110145 INA
Brand: INA
SKU: AXK110145 INA
Availability: OutOfStock

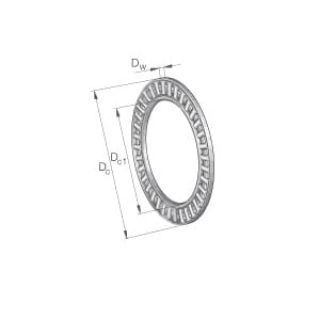

INA AXK110145 Axial Needle Roller and Cage Assembly, 110 mm Dia Bore, 145 mm OD, 4 mm W, 4 to 160 mm Dia Shaft

Manufacturer: INA

Manufacturer part number: AXK110145

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

INA Axial Needle Roller and Cage Assembly, Series: AXK Series, 110 mm Bore, 145 mm OD, 4 mm Width, For Shaft Diameter: 4 to 160 mm, 97000 N Dynamic/620000 N Static/63000 N Fatigue Load, 2230 rpm Maximum, -20 to 120 deg C

Standards

Meets to DIN 5405-2

Features

Single direction

Specifications

Bore Diameter:	110 mm
For Shaft Diameter:	4 to 160 mm
Load Capacity:	97000 N Dynamic/620000 N Static/63000 N Fatigue
Maximum Speed:	2230 rpm
Outside Diameter:	145 mm
Series:	AXK Series
Temperature Rating:	-20 to 120 deg C
Width:	4 mm
