Actual Product May Vary From Image

AXK120155 INA

Name: AXK120155 INA
Brand: INA
SKU: AXK120155 INA
Availability: OutOfStock

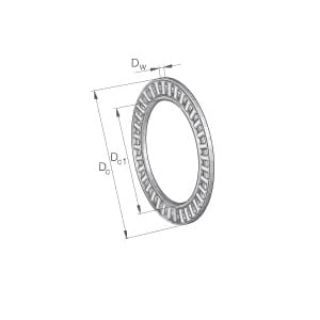

INA AXK120155 Axial Needle Roller and Cage Assembly, 120 mm Dia Bore, 155 mm OD, 4 mm W, 4 to 160 mm Dia Shaft

Manufacturer: INA

Manufacturer part number: AXK120155

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

INA Axial Needle Roller and Cage Assembly, Series: AXK Series, 120 mm Bore, 155 mm OD, 4 mm Width, For Shaft Diameter: 4 to 160 mm, 102000 N Dynamic/680000 N Static/68000 N Fatigue Load, 2070 rpm Maximum, -20 to 120 deg C

Standards

Meets to DIN 5405-2

Features

Single direction

Specifications

Bore Diameter:	120 mm
For Shaft Diameter:	4 to 160 mm
Load Capacity:	102000 N Dynamic/680000 N Static/68000 N Fatigue
Maximum Speed:	2070 rpm
Outside Diameter:	155 mm
Series:	AXK Series
Temperature Rating:	-20 to 120 deg C
Width:	4 mm
