AXK130170 INA

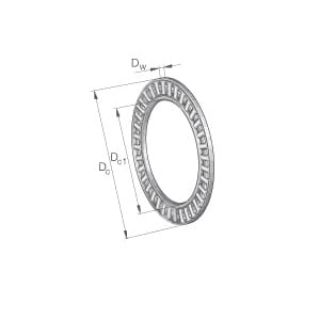

Picture of AXK130170 INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
AXK130170
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

INA

Description

INA Axial Needle Roller and Cage Assembly, Series: AXK Series, 130 mm Bore, 170 mm OD, 5 mm Width, For Shaft Diameter: 4 to 160 mm, 133000 N Dynamic/840000 N Static/75000 N Fatigue Load, 1900 rpm Maximum, -20 to 120 deg C

Standards

Meets to DIN 5405-2

Features

Single direction

Specifications

Bore Diameter:130 mm
For Shaft Diameter:4 to 160 mm
Load Capacity:133000 N Dynamic/840000 N Static/75000 N Fatigue
Maximum Speed:1900 rpm
Outside Diameter:170 mm
Series:AXK Series
Temperature Rating:-20 to 120 deg C
Width:5 mm

Products Specifications

Brand Name
INA USA CORPORATION
