AXK2035 INA

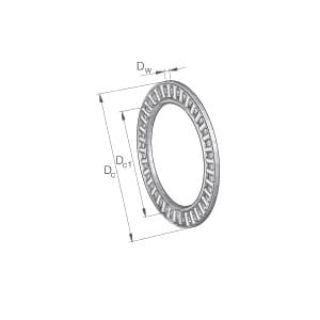

Picture of AXK2035 INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
AXK2035
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

INA

Description

INA Axial Needle Roller and Cage Assembly, Series: AXK Series, 20 mm Bore, 35 mm OD, 2 mm Width, For Shaft Diameter: 4 to 160 mm, 13100 N Dynamic/46500 N Static/4750 N Fatigue Load, 10500 rpm Maximum, -20 to 120 deg C

Standards

Meets to DIN 5405-2

Features

Single direction

Specifications

Bore Diameter:20 mm
For Shaft Diameter:4 to 160 mm
Load Capacity:13100 N Dynamic/46500 N Static/4750 N Fatigue
Maximum Speed:10500 rpm
Outside Diameter:35 mm
Series:AXK Series
Temperature Rating:-20 to 120 deg C
Width:2 mm

Products Specifications

Brand Name
INA USA CORPORATION
