AXK75100 INA

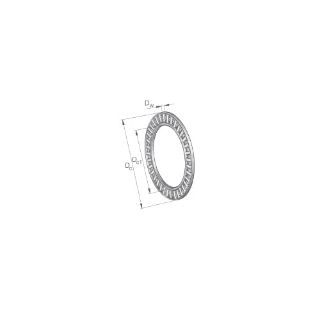

Picture of AXK75100 INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
AXK75100
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

INA

Description

INA Axial Needle Roller and Cage Assembly, Series: AXK Series, 75 mm Bore, 100 mm OD, 4 mm Width, For Shaft Diameter: 4 to 160 mm, 55000 N Dynamic/265000 N Static/28000 N Fatigue Load, 3250 rpm Maximum, -20 to 120 deg C

Standards

Meets to DIN 5405-2

Features

Single direction

Specifications

Bore Diameter:75 mm
For Shaft Diameter:4 to 160 mm
Load Capacity:55000 N Dynamic/265000 N Static/28000 N Fatigue
Maximum Speed:3250 rpm
Outside Diameter:100 mm
Series:AXK Series
Temperature Rating:-20 to 120 deg C
Width:4 mm

Products Specifications

Brand Name
INA USA CORPORATION
