AZP9315YF RND

Rex® roller bearings are available in shaft sizes from 3/4 in through 7 in. Design improvements have increased load ratings and speed limits, combined with internal bearing design improvements. These features provide lower noise levels and are key performance factors that provide long bearing life. Rex® roller bearings allow for +/- 2 deg of dynamic misalignment to accommodate installation in accuracies or shaft deflection. A unique feature of Rex® bearing seals is that they are field replaceable and field upgradeable. Rex® roller bearings are available with a variety of seal choices, housing styles and shaft attachments to meet various application requirements.

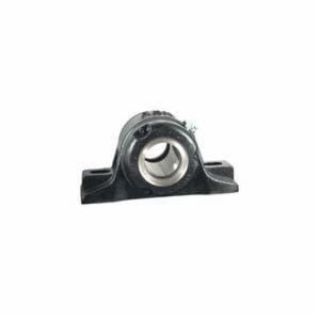

Rex® Pillow Block Spherical Roller Bearing Unit, Extra Heavy Duty Solid Housed, Series: 9000, 3-15/16 in Bore, 14-3/4 in Bolt Center-to-Center Length, 5-3/4 in Base to Bore Centerline, 18-1/2 in Overall Length, 5-17/32 in Overall Width, 11-1/4 in Overall Height, Four-Bolt Base Mounting, 6-3/4 in Base Width, Adapter Mounted Locking Device, Clearance Seal, Non-Expansion (Fixed) Expansion, 149500 lb Dynamic/159300 lb Static Load, 1850 rpm Maximum, Cast Iron, Powder Coated
