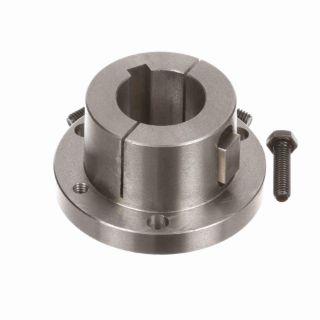

B 1 1/2M BRN

Name: B 1 1/2M BRN
Brand: Regal Rexnord
SKU: B 1 1/2M BRN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1726272

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Type B

Description

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

Browning® Split-Taper Bushing, Type B, 1-1/2 in Bore, 2.557 in Dia Small End/2-5/8 in Dia Large End Barrel Diameter, 3-1/8 in Diameter Bolt Circle, 3.688 in Diameter Flange, 0.516 in Flange Thickness, 3 Bolt Holes, 5/16 x 1-1/4 in Screw, For Use With: Gearbelt® Multiple Groove Sheaves, 1.938 in Overall Length, 3/8 x 3/16 in Keyway, Ductile Iron or Sintered Steel

Application

Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
Highest torque carrying capacity
Double split barrel assures true concentricity grips the shaft with positive clamp fit
Solid flange and double split barrel, assures better concentricity to the shaft
3/4 in/ft taper on barrel, Self-locking taper provides the highest degree of mechanical locking product to product
Key to key drive with keys on both the shaft and product to provide the strongest possible drive

Specifications

Barrel Diameter:	2.557 in Dia Small End/2-5/8 in Dia Large End
Bolt Circle Diameter:	3-1/8 in
Bore Diameter:	1-1/2 in
Country of Origin:	MX
Flange Diameter:	3.688 in
Flange Thickness:	0.516 in
Keyway Size:	3/8 x 3/16 in
Material:	Ductile Iron or Sintered Steel
Number of Bolt Holes:	3
Overall Length:	1.938 in
Screw Size:	5/16 x 1-1/4 in
Suitable For Use With:	Gearbelt® Multiple Groove Sheaves
