B-2416 KOY

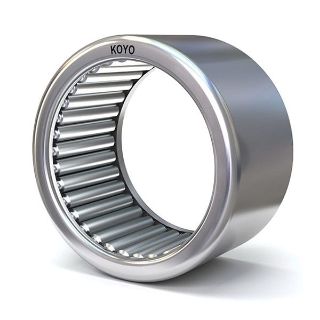

Koyo B-2416 Inch Series Open Ends Round Bore Uncaged Drawn Cup Needle Roller Bearing, 1-1/2 in Dia Bore, 1-7/8 in OD, 1 Row, 1 in W, 11170 lb Dynamic/23380 lb Static Load
Manufacturer: Koyo Bearings
Manufacturer part number: B-2416
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$14.47

Product Details

Brand Name

Koyo

Type

Open Ends Round Bore Uncaged

Description

Drawn Cup Needle Roller Bearings supports radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearing are easily installed with a press fit in the housing.
Koyo Drawn Cup Needle Roller Bearing, Open Ends Round Bore Uncaged, Series: B Inch Series, 1-1/2 in Bore, 1-7/8 in OD, 1 Row, 1 in Width, Open Closure, 11170 lb Dynamic/23380 lb Static Load, Steel Bearing, 2800 rpm Grease/4300 rpm Oil Maximum, -30 to 110 deg C

Application

Transmissions, Transfer Cases, Engines, Valves Trains, Steering, Barking Systems, Axle Supports, Outboard Engines, Power Tools, Copiers, Fax Machines, Paper-Moving Equipment and Appliances

Standards

ABEC1 | ASTM A1014 | ANSI/ABMA 18.2

Features

  • Full complement bearings handle high radial load carrying capability
  • Best used to provide maximum radial load capacity (full complement of rollers, no cage) for thin cross section applications
  • A hardened and machined shaft or an "IR" inner ring is required for optimal performance
  • A press fit into the housing is required

Specifications

Bearing Material:Steel
Bore Diameter:1-1/2 in
Closure Type:Open
Load Capacity:11170 lb Dynamic/23380 lb Static
Maximum Speed:2800 rpm Grease/4300 rpm Oil
Number of Rows:1
Outside Diameter:1-7/8 in
Series:B Inch Series
Temperature Rating:-30 to 110 deg C
Width:1 in
