B-3228 KOY

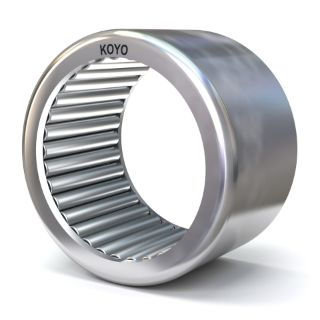

Koyo B-3228 Inch Series Open Ends Uncaged Drawn Cup Needle Roller Bearing, 2 in Dia Bore, 2-3/8 in OD, 1-3/4 in W, 21940 lbf Dynamic/61150 lbf Static Load
Manufacturer: Koyo Bearings
Manufacturer part number: B-3228
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$47.39

Product Details

Brand Name

Koyo

Type

Open Ends Uncaged

Description

Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearings are easily installed with a press fit in the housing.
Koyo Drawn Cup Needle Roller Bearing, Open Ends Uncaged, Series: B Inch Series, 2 in Bore, 2-3/8 in OD, 1-3/4 in Width, Open Closure, 21940 lbf Dynamic/61150 lbf Static Load, 3300 rpm Maximum, 250 deg F

Application

Transmissions, Transfer Cases, Engines, Valve Trains, Steering and Braking Systems, Axle Supports, Outboard Engines, Power Tools, Copiers, Fax Machines, Paper Moving Equipment and Appliances

Standards

ANSI/ABMA 18.2

Features

Full complement bearings handle high radial load-carrying capability

Specifications

Bore Diameter:2 in
Closure Type:Open
Load Capacity:21940 lbf Dynamic/61150 lbf Static
Maximum Speed:3300 rpm
Outside Diameter:2-3/8 in
Series:B Inch Series
Temperature Rating:250 deg F
Width:1-3/4 in
