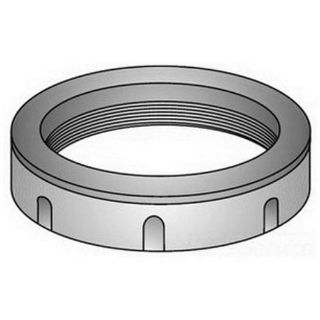

Actual Product May Vary From Image

B100 OZG

Name: B100 OZG
Brand: Appleton
SKU: B100 OZG
Price: 11.23 USD
Availability: InStock

O-Z/Gedney B-100 Type B Conduit Bushing, 1 in Trade, Malleable Iron, Zinc Plated

Manufacturer: Appleton

Manufacturer part number: B-100

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
10	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$11.23

Qty:

Product Details

Brand Name

O-Z/Gedney

Type

Type B

Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

O-Z/Gedney Conduit Bushing, Type B, 1 in Trade, Insulated Insulated/Non-Insulated, 302 deg F, Malleable Iron, Zinc Plated Finish, 1-5/8 in OD x 3/4 in W Dimensions

Application

For threaded rigid conduit and IMC

Standards

Features

O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration
They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress
Molded on high impact phenolic thermosetting insulation
Positive metallic conduit stop
Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded noncombustible phenolic insulated surfaces rated 150 deg C shall be used on the ends of all raceways containing number 4 or larger conductors

Specifications

Country of Origin:	MX
Dimensions:	1-5/8 in OD x 3/4 in W
Finish:	Zinc Plated
Insulated/Non-Insulated:	Insulated
Material:	Malleable Iron
Temperature Rating:	302 deg F
Trade Size:	1 in
