B16L RBC

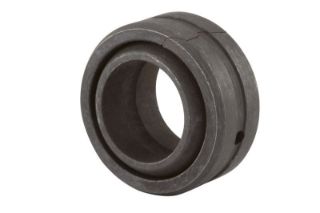

RBC® B16-L B-L Series Spherical Plain Bearing, 1 in Dia Bore, 1-5/8 in OD, 7/8 in W, 37700 lb Load
Manufacturer part number: B16-L
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$63.88

Product Details

Brand Name

RBC®

Description

RBC® has been a pioneer in spherical plain bearing technology since inventing the fractured outer race design many years ago. Since that time, RBC® has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, and extended lubrication groove spherical plain bearing designs.
RBC® Spherical Plain Bearing, Series: B-L Series, 1 in Bore Dia, 1-5/8 in Outside Dia, 7/8 in W, Open Closure, 37700 lb, 52100 Steel Bearing, 300 deg F

Application

Hydraulic Cranes, Haul Trucks, Wind Turbines, Satellite Antennas, Forklift Trucks, Extractors, Front End Loaders, Overhead Carriers, Chain Conveyors, Log Skidders, Hydraulic Cylinder Ends, Linkages, Kingpin Assemblies, Clevis Ends, Shock Absorber Assemblies and Tie Rod Ends

Standards

ASPR | CAS | DFAR | FAR Standards

Features

  • Designed to support heavy radial loads under misalignment
  • These bearings also possess moderate thrust loading capability
  • Lube holes and grooves to facilitate relubrication
  • 13 deg misalignment angle
  • 7300 lb axial static
  • 9400 lb dynamic/37700 lb static

Specifications

Bearing Material:52100 Steel
Bore Diameter:1 in
Closure Type:Open
Country of Origin:US
Load Capacity:37700 lb
Outside Diameter:1-5/8 in
Series:B-L Series
Temperature Rating:300 deg F
Width:7/8 in
