B502 CL MOR

Name: B502 CL MOR
Brand: Regal Rexnord
SKU: B502 CL MOR
Availability: OutOfStock

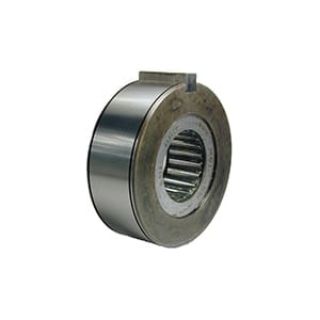

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

648002

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Morse®

Description

The B500 series clutches share the same design. A full complement of cams is retained in an outer race. This requires a bearing supported hardened shaft as the inner race. These are primarily used for back stopping applications. It can also be used for indexing and overrunning applications as well. The B500 series was created as a replacement backstop for many different gear reducers. This series come pre-lubricated with special light grease. In service they can be lubricated with either grease or oil.

Morse® Cam Clutch, Series: B500, 0.7378 in Bore, 1.848 in OD, 7/8 in Overall Length, 102 ft-lb Torque, 2500 rpm Maximum, Shaft Mounting

Application

Aggregate, Cement, Agriculture, Cranes, Hoists, HVAC, Minerals, Mining, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

Rugged cam clutch designed for applications where space and weight are factors in clutch selection
Full complement of cams held in the outer races
Input shaft used as the inner race must be hardened and ground to size
Interchangeable with competitors product
Lubrication required
Precision formed and honed cams provide extended wear life
Versatile, compact design adaptable to numerous industrial applications
Clutches require bearing support to ensure concentricity between the inner outer races and taper on this shaft should not exceed 0.0002 per in

Specifications

Bore Diameter:	0.7378 in
Maximum Speed:	2500 rpm
Mounting Type:	Shaft
Outside Diameter:	1.848 in
Overall Length:	7/8 in
Series:	B500
Torque Rating:	102 ft-lb
