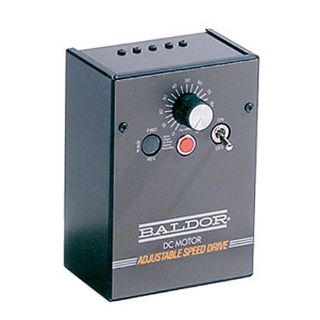

Picture of BC140 BLD
Actual Product May Vary From Image

BC140 BLD

CS2934A,120/240VAC .5/1-HP SCR CTL,NEMA
Manufacturer: ABB
Manufacturer part number: BC140
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$466.87

Product Details

Brand Name

GE

Description

Baldor Electric; DC SCR Control; Voltage Rating: 115/230 VDC; Control: Analog; Environmental Conditions: 0 - 40 DEG C Ambient Condition; Size: 7.120 IN Height x 6.250 IN Width x 2.750 IN Depth; Installed Options: RS232: N/A, RS422/RS485: N/A, Pneumatic-In/Relay-Out: N/A, Isolated Input: N/A, Master/Pulse/Follower: N/A, DC Tach Interface: N/A, Hi-Res Analog Input: N/A, Isolated Encoder: N/A, Resolver Input: N/A, Field Power Suppy: N/A; Dynamic/regenerative Braking: None; Horsepower: 2 HP; Input Phase - Rated: 1; Cooling Type: Convection; Number Of Axis: 1

Application

For Conveyors, Mixers, Packaging Machinery And Other Applications Requiring Variable Speed And Constant Torque

Standards

UL, CSA, CUL, CE

Features

Features: Full Wave SCR Control With Free Wheeling Diode (NEMA Type K); Field Power Supply Allows Use With Shunt Wound DC Motors As Well As Permanent Magnet Motors; Adjustable Accel, Decel, Current Limit, IR Comp, Min And Max Speed; Current Limit Indicating LED; 5K; Dynamic/regenerative Braking: None; Horsepower: 2 HP; Input Phase - Rated: 1; Cooling Type: Convection; Number Of Axis: 1; Installed Options: RS232: N/A, RS422/RS485: N/A, Pneumatic-In/Relay-Out: N/A, Isolated Input: N/A, Master/Pulse/Follower: N/A, D

Specifications

Control:Analog
Country of Origin:US
Environmental Conditions:0 - 40 DEG C Ambient Condition
Size:7.120 IN Height x 6.250 IN Width x 2.750 IN Depth
Voltage Rating:115/230 VDC
