BCCM6033SQ BSF

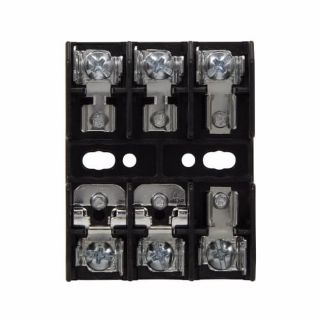

Picture of BCCM6033SQ BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
BCCM6033SQ
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 24 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Bussmann

Type

Modular Ferrule

Description

Bussmann Fuse Block, Modular Ferrule, Series: BCCM, 600 VAC/VDC, 1/10 to 30 A, 3 Pole, Class: CC/Midget, 1/4 in Quick-Connect/Screw Connection, Chassis Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, For Use With: LP-CC/KTK-R/FNQ-R Series (2 )Class CC/1 Midget Fuse, Thermoplastic, 2.375 in H x 3 in W x 1.21 in D Dimensions

Standards

CE Certified | UL Listed Guide IZLT | UL File No. E14853 | CSA Class 6225-01 | CSA File No. 47235 | UL 94V0 Flammability Rating

Specifications

Amperage Rating:1/10 to 30 A
Class:CC/Midget
Connection Type:1/4 in Quick-Connect/Screw
Country of Origin:MX
Dimensions:2.375 in H x 3 in W x 1.21 in D
Fuse Diameter:13/32 in
Fuse Length:1-1/2 in
Material:Thermoplastic
Mounting Type:Chassis
Number of Poles:3
Series:BCCM
Suitable For Use With:LP-CC/KTK-R/FNQ-R Series (2 )Class CC/1 Midget Fuse
Voltage Rating:600 VAC/VDC
