BCM603-3PQ BSF

Name: BCM603-3PQ BSF
Brand: Bussmann
SKU: BCM603-3PQ BSF
Price: 106.87 USD
Availability: OutOfStock

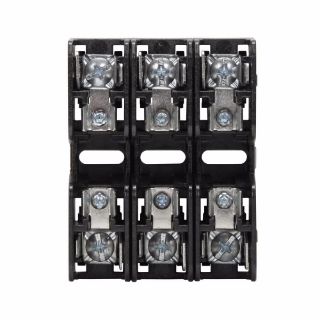

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

BCM603-3PQ

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 35 days

Estimated dates are contingent upon manufacturer stock.

$106.87 / EA

Description

Brand Name

Bussmann

Type

Modular

Alternate Supplier #

Grainger - 49ZU03

Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Bussmann Fuse Block, Modular, Series: BCM, 600 VAC, 30 A, 3 Pole, Class: CC, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 2.4 in W x 1.3 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA 47235-6225-01 | RoHS Compliant | UL File No.E14853 Guide IZLT | UL94 V-0 Flammability Rating

Features

Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
Compact footprint consumes minimal panel space
Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass

Specifications

Amperage Rating:	30 A
Class:	CC
Connection Type:	1/4 in Quick-Connect/Pressure Plate
Country of Origin:	MX
Dimensions:	3 in L x 2.4 in W x 1.3 in H
Material:	Thermoplastic
Mounting Type:	DIN Rail/Panel
Number of Poles:	3
Series:	BCM
Suitable For Use With:	Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse
Temperature Rating:	-40 to 120 deg C
Voltage Rating:	600 VAC
Wire Size:	18 to 10 AWG
