Actual Product May Vary From Image

BFB-20RTH RMD SMT

Name: BFB-20RTH RMD SMT
Brand: Regal Rexnord
SKU: BFB-20RTH RMD SMT
Availability: OutOfStock

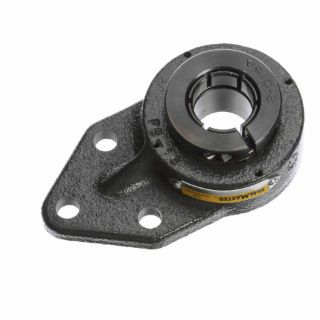

Sealmaster® 713934 Flange Mounted Ball Bearing, 1-1/4 in Dia Bore, 1-7/8 in L Bolt Center-to-Center, 3-Bolt Bracket Flange Mount, 5.36 in OAL/Dia

Manufacturer: Regal Rexnord

Manufacturer part number: 713934

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Sealmaster®

Description

Sealmaster® Flange Mounted Ball Bearing, 1-1/4 in Bore Dia, 1-7/8 in Bolt Center-to-Center Length, 3-Bolt Bracket Flange Mounting Type, 5.36 in Overall Length/Diameter, Concentric Locking Device, 52100 Steel Bearing, 2300 rpm Maximum, 220 deg F, Black Oxide

Features

Sealmaster® Bev Dry™ cast iron housing with bolt on end cap and back side shield for optimal protection
Skwezloc® concentric locking for near perfect concentricity
High performance triple contact seal design provide multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain relubrication
Tapered land outer ring ensures that lubricant will be easily directed back to the raceway
Reduced maintenance design with plug and includes Sealmaster® tapered lands ensures that lubricant will be easily redirected back to the raceway
Sealmaster® exclusive lock and pin dimple for direct lubrication and anti-rotation
Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication

Specifications

Bearing Material:	52100 Steel
Bolt Center-to-Center Length:	1-7/8 in
Bore Diameter:	1-1/4 in
Country of Origin:	US
Finish:	Black Oxide
Flange Mounting Type:	3-Bolt Bracket
Locking Device:	Concentric
Maximum Speed:	2300 rpm
Overall Length/Diameter:	5.36 in
Temperature Rating:	220 deg F
