BK4520 INA

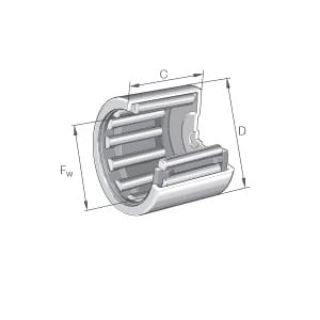

Picture of BK4520 INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
BK4520
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

INA

Description

INA Drawn Cup Needle Roller Bearing, Series: BK Series, 45 mm Bore Dia, 52 mm Outside Dia, 1 Row, 20 mm W, Open Closure, 27000 N Dynamic/59000 N Static/7600 N Fatigue, Steel Cage, 5900 rpm Maximum, 140 deg C

Standards

Meets to DIN 618-1/ISO 3245

Features

  • Deep drawn shell design for maximum capacity in the minimum radial space
  • Cage guided needle rollers for low friction, whole roller loading and high speeds
  • With one end closed for shaft end locations to improve sealing
  • Easily mounted without snap rings or shoulders

Specifications

Bore Diameter:45 mm
Cage Material:Steel
Closure Type:Open
Load Capacity:27000 N Dynamic/59000 N Static/7600 N Fatigue
Maximum Speed:5900 rpm
Number of Rows:1
Outside Diameter:52 mm
Series:BK Series
Temperature Rating:140 deg C
Width:20 mm

Products Specifications

Brand Name
INA USA CORPORATION
