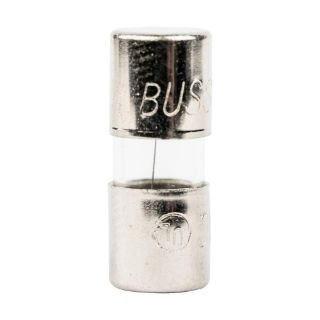

BK/AGA-30 BSF

Name: BK/AGA-30 BSF
Brand: Bussmann
SKU: BK/AGA-30 BSF
Price: 2.16 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

BK/AGA-30

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 24 days

Estimated dates are contingent upon manufacturer stock.

$2.16 / EA

Description

Brand Name

Bussmann

Type

Small Dimension

Description

Fast-acting, glass tube 1/4" x 5/8" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGA fast-acting, glass tube ferrule 1/4" x 5/8" fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Bussmann Fast Acting Fuse, Small Dimension, Series: AGA, Non-Indicating, Rejection, 30 A, 125 VAC, 32 VDC, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 5/8 in L Body

Application

Electronic Circuits

Standards

CE Certified | UL 248-14 | Guide JDYX2 | File No. E19180 Recognized

Features

Fast acting for maximum protection
Size rejects insertion of other fuse types
Nickel plated brass end caps
1000 A at 32 VAC interrupt rating

Specifications

Amperage Rating:	30 A
Body Size:	1/4 in Dia x 5/8 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Rejection
Series:	AGA
Terminal Type:	Ferrule
Voltage Rating:	125 VAC, 32 VDC
