BK/HBV-I-R BSF

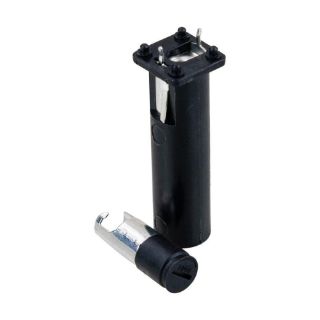

Picture of BK/HBV-I-R BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
BK/HBV-I-R
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$23.04 / EA

Description

Brand Name

Bussmann

Description

Bussmann Fuse Holder, Series: HBV, 250 VAC, 6.3/12/16 A, 1 Pole, Kicked, Vertical PC Board Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, -40 to 85 deg C, For Use With: Non-Indicating Fuse, Thermoplastic, Gray

Standards

RoHS Compliant | UL Recognized | Guide IZLT2, File No. E14853 | CSA Class 622501, File No. 47235 | CE Certified | UL 94-V-0 Flammability Rating | SEMKO 800444 | VDE 4009241

Features

  • Fuse carriers are interchangeable
  • Fuse carrier and knob are spring loaded bayonet type with screwdriver slot
  • Kicked terminals for optimum wave soldering
  • High dielectric molded thermoplastic meets ul 94V0 flammability rating
  • 16 A for UL, 12 A for CSA, 6.3 A for VDE

Specifications

Amperage Rating:6.3/12/16 A
Color:Gray
Connection Type:Kicked
Country of Origin:MX
Fuse Diameter:1/4 in
Fuse Length:1-1/4 in
Material:Thermoplastic
Mounting Type:Vertical PC Board
Number of Poles:1
Series:HBV
Suitable For Use With:Non-Indicating Fuse
Temperature Rating:-40 to 85 deg C
Voltage Rating:250 VAC
