BK/HPF-EE BSF

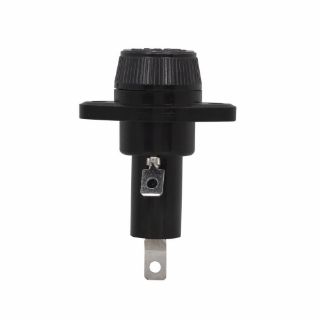

Picture of BK/HPF-EE BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
BK/HPF-EE
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 14 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$81.80 / EA

Description

Brand Name

Bussmann

Type

Standard

Description

Bussmann Fuse Holder, Standard, Series: HPF, 600 V, 15 A, 1 Pole, Class: CC, 1/2 in Quick-Connect Terminal, Panel Mount, 1-5/16 in Fuse Length, 13/32 in Fuse Dia, For Use With: SC Series 0 to 15 A Fuse, Black, 1.78 in Dia x 2.69 in L

Application

Electrical Assemblies, Branch circuit protection, Panels and OEMs

Standards

CE Certified | CSA 622501/File No. 47235 | RoHS Compliant | UL 94 HB Flammability Rating | UL File No. E14853 | UL Guide IZLT2 | UL Recognized

Specifications

Amperage Rating:15 A
Class:CC
Color:Black
Connection Type:1/2 in Quick-Connect Terminal
Country of Origin:MX
Dimensions:1.78 in Dia x 2.69 in L
Fuse Diameter:13/32 in
Fuse Length:1-5/16 in
Mounting Type:Panel
Number of Poles:1
Series:HPF
Suitable For Use With:SC Series 0 to 15 A Fuse
Voltage Rating:600 V

Resources
