BK/HTB-32I-R BSF

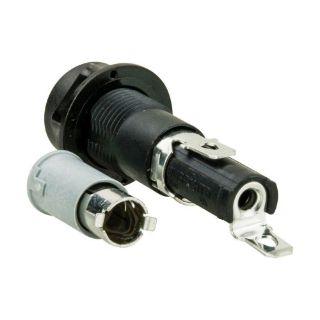

Picture of BK/HTB-32I-R BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
BK/HTB-32I-R
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$14.58 / EA

Description

Brand Name

Bussmann

Type

Low Profile

Description

Bussmann Fuse Holder, Low Profile, Series: HTB, 250 VAC, 16/20 A, 1 Pole, Solder 3/16 in Quick Connect In-Line Rear, Panel Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, -55 to 85 deg C, Thermoplastic, Black, 0.81 in L

Standards

RoHS Compliant | UL Recognized | Guide IZLT2, File No. E14853 | CSA Class 622501 File No. File No. 47235 | CE Certified | VDE Certified | SEMKO Certified | UL 94V-0 Flammability Rating

Features

  • High temperature, flame retardant thermoplastic construction
  • Spacer black polycarbonate mounting nut, tin plated brass terminals
  • Withstands 15 to 20 in-lb torque to mounting nut when mounting fuse holder to panel
  • 20 A UL and 16 A CSA

Specifications

Amperage Rating:16/20 A
Color:Black
Connection Type:Solder 3/16 in Quick Connect In-Line Rear
Country of Origin:MX
Dimensions:0.81 in L
Fuse Diameter:1/4 in
Fuse Length:1-1/4 in
Material:Thermoplastic
Mounting Type:Panel
Number of Poles:1
Series:HTB
Temperature Rating:-55 to 85 deg C
Voltage Rating:250 VAC
