Name: BK/HTC-50M BSF
Brand: Bussmann
SKU: BK/HTC-50M BSF
Availability: OutOfStock

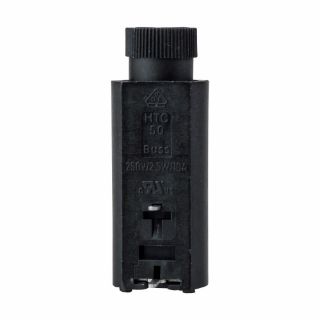

BK/HTC-50M BSF

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

BK/HTC-50M

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Description

Bussmann Fuse Holder, Series: HTC, 250 VAC, 6.3 A, 2.5 W, Surface/Through Hole Mount, 20 mm Fuse Length, 5 mm Fuse Dia, -30 to 85 deg C, For Use With: PCB Fuse, Thermoplastic, 1.303 in L x 0.512 in W x 0.461 in D

Standards

cULus Guide IZLT2 and IZLT8 File No. E14853 Recognized | SEMKO 9226032 | IEC 68-2-20 | UL 94-V-0 Flammability Rating

Features

Bayonet cap/carrier
Thermoplastic, tin plated brass terminal

Specifications

Amperage Rating:	6.3 A
Country of Origin:	IT
Dimensions:	1.303 in L x 0.512 in W x 0.461 in D
Fuse Diameter:	5 mm
Fuse Length:	20 mm
Material:	Thermoplastic
Mounting Type:	Surface/Through Hole
Power Rating:	2.5 W
Series:	HTC
Suitable For Use With:	PCB Fuse
Temperature Rating:	-30 to 85 deg C
Voltage Rating:	250 VAC
