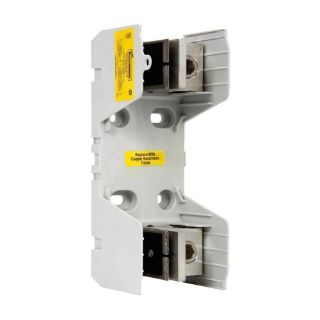

BK/RM25400-1CR BSF

Name: BK/RM25400-1CR BSF
Brand: Bussmann
SKU: BK/RM25400-1CR BSF
Price: 1,539.50 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

BK/RM25400-1CR

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

$1,539.50 / EA

Description

Brand Name

Bussmann

Type

Modular

Description

Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 400 A, 1 Pole, Class: R, Box Lug, 600 kcmil, 4 AWG to 500 kcmil, 4 to 3/0 AWG Wire, Hole Mount, -40 to 120 deg C, For Use With: Low-Peak™ LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN-R Series Time Delay Fuse, Thermoplastic, 9.5 in L x 4.8 in W x 3.6 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CSA 47235/622501 | cULus E14853 Guide IZLT/IZLT7 | RoHS Compliant

Features

Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility
Up to four mounting holes per pole increase installation flexibility
Standard phase barriers between poles for additional safety
Standard fuse clip reinforcing springs enhance electrical contact
600 kcmil, 4 AWG to 500 kcmil, (2) 4 AWG to 3/0 copper, (2) 4 AWG to 3/0 aluminum Wire

Specifications

Amperage Rating:	400 A
Class:	R
Connection Type:	Box Lug
Country of Origin:	MX
Dimensions:	9.5 in L x 4.8 in W x 3.6 in H
Material:	Thermoplastic
Mounting Type:	Hole
Number of Poles:	1
Series:	RM Series
Suitable For Use With:	Low-Peak™ LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN-R Series Time Delay Fuse
Temperature Rating:	-40 to 120 deg C
Voltage Rating:	250 V
Wire Size:	600 kcmil, 4 AWG to 500 kcmil, 4 to 3/0 AWG
