Name: BK/S-8201-1-R BSF
Brand: Bussmann
SKU: BK/S-8201-1-R BSF
Price: 3.20 USD
Availability: OutOfStock

BK/S-8201-1-R BSF

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

BK/S-8201-1-R

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

$3.20 / EA

Description

Brand Name

Bussmann

Description

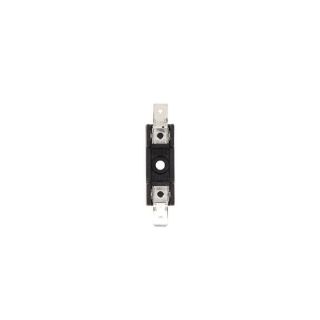

Bussmann Fuse Block, Series: 8200, 300 VAC/VDC, 16/20 A, 1 Pole, 1/4 in Quick Connect/Straight Connection, Bolted-In Mounting, 1-1/4 in Fuse Length, 1/4 in Diameter Fuse, 130 deg C, Thermoplastic, Black, 2.16 in L x 0.5 in W x 0.77 in H Dimensions

Standards

Features

Molded flame retardant thermoplastic body, bright tin plated spring bronze clip
16 A CSA and 20 A UL

Specifications

Amperage Rating:	16/20 A
Color:	Black
Connection Type:	1/4 in Quick Connect/Straight
Country of Origin:	MX
Dimensions:	2.16 in L x 0.5 in W x 0.77 in H
Fuse Diameter:	1/4 in
Fuse Length:	1-1/4 in
Material:	Thermoplastic
Mounting Type:	Bolted-In
Number of Poles:	1
Series:	8200
Temperature Rating:	130 deg C
Voltage Rating:	300 VAC/VDC
