Name: BK/S-8201-4 BSF
Brand: Bussmann
SKU: BK/S-8201-4 BSF
Price: 25.74 USD
Availability: OutOfStock

BK/S-8201-4 BSF

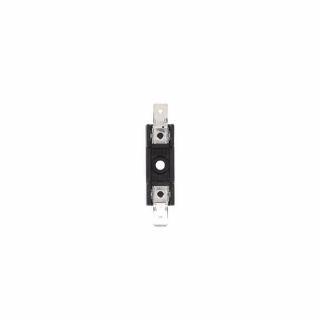

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

BK/S-8201-4

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 24 days

Estimated dates are contingent upon manufacturer stock.

$25.74 / EA

Description

Brand Name

Bussmann

Type

Breakaway

Description

Bussmann Fuse Block, Breakaway, Series: 8200, 300 VAC/VDC, 16/20 A, 4 Pole, 1/4 in Quick Connect/Straight Connection, Bolted-In Mounting, 1-1/4 in Fuse Length, 1/4 in Diameter Fuse, 130 deg C, Thermoplastic, Black, 2-3/8 in L Dimensions

Standards

UL Recognized | Guide IZLT2 File No. E14853 | CSA Class 622501 File No. 47235 | CE Certified | UL 94V-0 Flammability Rating

Features

Molded flame retardant thermoplastic body, bright tin plated spring bronze clip
16 A CSA and 20 A UL

Specifications

Amperage Rating:	16/20 A
Color:	Black
Connection Type:	1/4 in Quick Connect/Straight
Country of Origin:	US
Dimensions:	2-3/8 in L
Fuse Diameter:	1/4 in
Fuse Length:	1-1/4 in
Material:	Thermoplastic
Mounting Type:	Bolted-In
Number of Poles:	4
Series:	8200
Temperature Rating:	130 deg C
Voltage Rating:	300 VAC/VDC
