BMM603-3SQ BSF

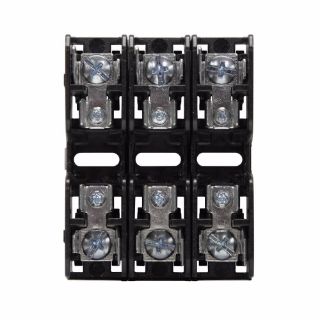

Picture of BMM603-3SQ BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
BMM603-3SQ
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 28 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$69.17 / EA

Description

Brand Name

Bussmann

Type

Modular

Alternate Supplier #

Grainger - 40LH13

Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.
Bussmann Fuse Block, Modular, Series: BMM, 600 V, 30 A, 3 Pole, Class: CC/Midget, 1/4 in Quick-Connect/Screw, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Thermoplastic, 3 in L x 2.4 in W x 1.3 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA 47235-6225-01 | RoHS Compliant | UL File No.E14853 Guide IZLT | UL94 V-0 Flammability Rating

Features

  • Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass

Specifications

Amperage Rating:30 A
Class:CC/Midget
Connection Type:1/4 in Quick-Connect/Screw
Dimensions:3 in L x 2.4 in W x 1.3 in H
Fuse Diameter:13/32 in
Fuse Length:1-1/2 in
Material:Thermoplastic
Mounting Type:DIN Rail/Panel
Number of Poles:3
Series:BMM
Suitable For Use With:BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses
Temperature Rating:-40 to 120 deg C
Voltage Rating:600 V
Wire Size:18 to 10 AWG
