B/P12270 TKN

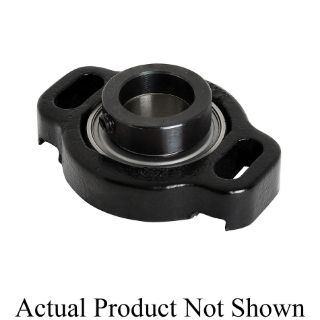

Picture of B/P12270 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
B/P12270
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,797.82 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Fafnir®

Type

Standard Duty

Description

Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken® Fafnir®, B/P12270, Pillow Block Ball Bearing Housed Unit, Standard Duty, 1.754 in Bore, 7-1/4 in Bolt Center-to-Center Length, 6-3/8 in Overall Length, 6-3/8 in Overall Width, 2.626 in Overall Height, Hex Bore, Set Screw Locking Device, 10800 lb Dynamic/6570 lb Static Load, Cast Iron

Standards

Precision Class ABEC 1

Features

  • CJ 100MM Housing with special torque requirement
  • Uses hex bore bearing GC1200KPPB2 L/C with collar locking mechanism

Specifications

Bolt Center-to-Center Length:7-1/4 in
Bore Diameter:1.754 in
Bore Type:Hex
Load Capacity:10800 lb Dynamic/6570 lb Static
Locking Device:Set Screw
Material:Cast Iron
Overall Height:2.626 in
Overall Length:6-3/8 in
Overall Width:6-3/8 in

Products Specifications

Brand Name
Timken
Shaft Diameter
1 3/4 in
