BPLB6847C02 LBB

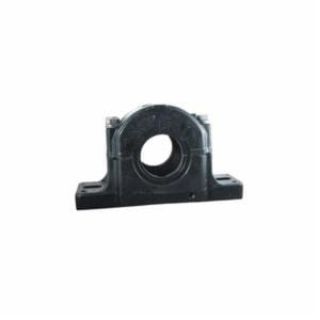

Link-Belt® BPLB6847C02 6800 2-Piece Fixed Split Pillow Block Housing, 2-15/16 in ID, Two-Bolt Base Mount, 3-3/4 in Base to Bore Centerline, 13 in OAL x 7-5/16 in OAH
Manufacturer: Rexnord
Manufacturer part number: BPLB6847C02
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Link-Belt®

Type

2-Piece Fixed

Description

Self aligning spherical roller bearing pillow blocks and take-ups provide high load carrying capacity for radial or combination radial and thrust loads. They are designed for use on conveyors, dryers, road building equipment, runout tables, fans, crushers, hammer mills and many other high-precision, heavy-duty applications.
Link-Belt® Split Pillow Block Housing, 2-Piece Fixed, Series: 6800, 2-15/16 in ID, Two-Bolt Base Mounting, 3-3/4 in Base to Bore Centerline, 13 in Overall Length, 5 in Overall Width, 7-5/16 in Overall Height, Compatible Bore Diameter: 2-15/16 in, Compatible Bearing Type: Spherical Roller Bearing, 9-7/8 to 11 in Bolt Center-to-Center Length, 5 in Base Width, Cast Iron, Black Nylon

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction, Package Handling and Waste Water Treatment Industries

Standards

ANSI | ABMA STD 11

Features

  • Spherical roller bearings may be direct or adapter mounted and housings have provision for fixed or expansion mounting
  • Removable housing cap
  • Caps and bases matched and marked
  • Base and cap are dowelled for accurate assembly and security
  • Large lubricant reservoir in base prolongs lubrication interval
  • Slotted bolt holes in base facilitate mounting, machined finish on base for firm seating on supporting surface
  • Dimpled flats for bearing monitor probes
  • Adapter mounted with 22200LBK bearing
  • Closed end unit, internal clearance less than C0
  • Patented T contact water seal
  • Matched base and cap
  • Large reservoir for grease or oil storage
  • Tapered adapter mounting system

Specifications

Base to Bore Centerline:3-3/4 in
Base Width:5 in
Bolt Center-to-Center Length:9-7/8 to 11 in
Compatible Bearing Type:Spherical Roller Bearing
Compatible Bore Diameter:2-15/16 in
Country of Origin:US
Finish:Black Nylon
Inside Diameter:2-15/16 in
Material:Cast Iron
Mounting Type:Two-Bolt Base
Overall Height:7-5/16 in
Overall Length:13 in
Overall Width:5 in
Series:6800
