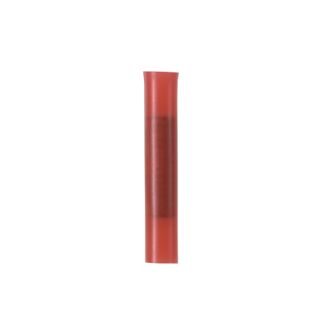

Actual Product May Vary From Image

BSN18-C PAN

Name: BSN18-C PAN
Brand: Panduit
SKU: BSN18-C PAN
Price: 1.15 USD
Availability: OutOfStock

Panduit® BSN18-C Type BSN Loose Piece Butt Splice, 22 to 18 AWG Conductor, 1.15 in L, Brazed Seam/Butted/Standard Barrel, Red

Manufacturer: Panduit

Manufacturer part number: BSN18-C

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.15

Qty:

Product Details

Brand Name

Panduit®

Type

Loose Piece Standard

Description

Panduit®, BSN18-C, Butt Splice, Type BSN Loose Piece, Solid/Stranded Copper Conductor, 22 to 18 AWG Conductor, 1.15 in Length, Brazed Seam/Butted/Standard Barrel, 0.13 in ID x 0.2 in OD Barrel, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.12 in Dia Maximum Nylon Insulation, 221 deg F, Red, TiN Coated, 1.15 in L x 0.2 in W Dimensions

Application

For limited space applications

Standards

Features

Designed to splice two solid or stranded wires together to repair or lengthen wires
Butted configuration provides low profile for limited space applications
Internal wire stop assures proper length of insertion into terminal barrel
Internal wire stop assures proper insertion length for a quality connection
Brazed seem protects the terminal barrel from splitting during the crimp process

Specifications

Barrel Size:	0.13 in ID x 0.2 in OD
Barrel Type:	Brazed Seam/Butted/Standard
Color:	Red
Conductor Size:	22 to 18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	1.15 in L x 0.2 in W
Finish:	TiN Coated
Length:	1.15 in
Material:	Copper
Series:	BSN
Specifications:	9/32 in L Wire Strip, 0.115 in Dia Maximum Nylon Insulation
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
