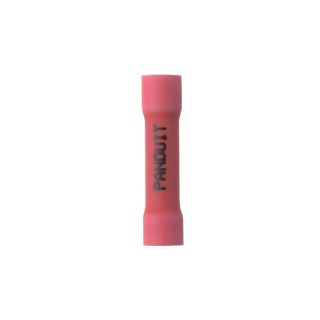

Picture of BSV18X-LY PAN
Actual Product May Vary From Image

BSV18X-LY PAN

Panduit® BSV18X-LY Type BSV Loose Piece Butt Splice, 22 to 18 AWG Conductor, 1.03 in L, Brazed Seam/Expanded/Funnel Barrel, Red
Manufacturer: Panduit
Manufacturer part number: BSV18X-LY
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
200 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$0.87

Product Details

Brand Name

Panduit®

Type

Expanded Loose Piece

Description

Panduit®, BSV18X-LY, Butt Splice, Type BSV Loose Piece, Solid/Stranded Copper Conductor, 22 to 18 AWG Conductor, 1.03 in Length, Brazed Seam/Expanded/Funnel Barrel, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation, 221 deg F, Red, TiN Coated

Application

For limited space panel applications

Standards

ARRA Compliant | BAA Compliant | CSA C22.2 File No 65, File No LR31212 | RoHS Compliant | UL 486C/587H File No E52164 | UL 94 V-0 Flammability Rated | Buy American Act Compliant

Features

  • Expanded wire entry designed to accommodate wire with a larger insulation thickness
  • Designed to splice two solid or stranded wires together to repair or lengthen wires
  • Internal wire stop assures proper length of insertion into terminal barrel
  • Butted configuration provides low profile for limited space applications
  • Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Type:Brazed Seam/Expanded
Color:Red
Conductor Size:22 to 18 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Finish:TiN Coated
Length:1.03 in
Material:Copper
Series:BSV
Specifications:5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation
Temperature Rating:221 deg F
Voltage Rating:600 VAC
