BSV18X-MY PAN

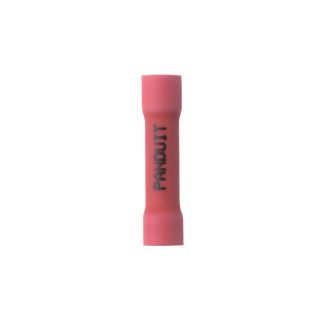

Picture of BSV18X-MY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
BSV18X-MY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$0.49 / EA
This product has a minimum quantity of 1000

Description

Brand Name

Panduit®

Type

Expanded Loose Piece

Alternate Supplier #

Fastenal - 0728354

Description

Panduit®, BSV18X-MY, Butt Splice, Type BSV Loose Piece, Solid/Stranded Copper Conductor, 22 to 18 AWG Conductor, 1.03 in Length, Brazed Seam/Expanded/Funnel Barrel, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation, 221 deg F, Red, TiN Coated

Application

For limited space panel applications

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 File No. LR31212 | RoHS Compliant | UL 486C | UL 587H File No. E52164 | UL 94 V-0 Flammability Rating | Buy American Act Compliant

Features

  • Expanded wire entry designed to accommodate wire with a larger insulation thickness
  • Designed to splice two solid or stranded wires together to repair or lengthen wires
  • Internal wire stop assures proper length of insertion into terminal barrel
  • Butted configuration provides low profile for limited space applications
  • Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Type:Brazed Seam/Expanded
Color:Red
Conductor Size:22 to 18 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Finish:TiN Coated
Length:1.03 in
Material:Copper
Series:BSV
Specifications:5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation
Temperature Rating:221 deg F
Voltage Rating:600 VAC
