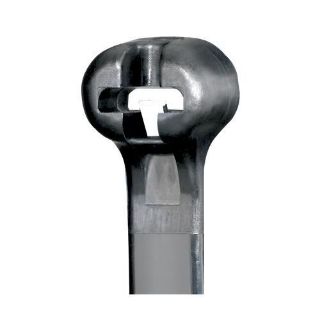

Picture of BT1.5I-M30 PAN
Actual Product May Vary From Image

BT1.5I-M30 PAN

Panduit® Dome-Top® Barb Ty BT1.5I-M30 BT Series Heat Stabilized Intermediate Cross Section Cable Tie, 6.1 in L x 0.141 in W x 0.041 in THK, Nylon 6.6, Black
Manufacturer: Panduit
Manufacturer part number: BT1.5I-M30
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$0.10
This product has a minimum quantity of 5000

Product Details

Brand Name

Panduit®

Type

Heat Stabilized Intermediate Cross Section

Alternate Supplier #

Fastenal - 99173156

Description

Panduit® Dome-Top® Barb Ty, BT1.5I-M30, Cable Tie, Heat Stabilized Intermediate Cross Section, Series: BT Series, 6.1 in Length, 0.141 in Width, 0.041 in Thickness, 1.5 in Diameter Bundle, Lock Mechanism: Locking, 178 N Tensile Strength, -76 to 239 deg F, Nylon 6.6, Black

Application

High Temperature and Indoor Applications

Standards

ARRA Compliant | Buy American Act Compliant | CE Marked | CSA C22.2 File No. 62275/11130200 | CSA Certified | NRC 10CFR50 | QPL-AS23190 | RoHS Compliant | UL 62275 File No. E56854

Features

  • For high temperature applications up to 239 deg F, indoor use
  • Dome-Top head features unique patented design with round, smooth edges
  • Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
  • Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
  • Greater resistance to damage caused by ultraviolet light
  • Small head height allows more efficient use of space in compact areas
  • Exclusive two-piece design offers the lowest threading force in the industry
  • Average 14% lighter than one-piece cable ties
  • Releasable prior to final tensioning for bundle modifications

Specifications

Bundle Diameter:1.5 in
Color:Black
Country of Origin:CR
Length:6.1 in
Lock Mechanism:Locking
Material:Nylon 6.6
Series:BT Series
Temperature Rating:-76 to 239 deg F
Tensile Strength:178 N
Thickness:0.041 in
Width:0.141 in
