BTY801P-FBE-10 WOO

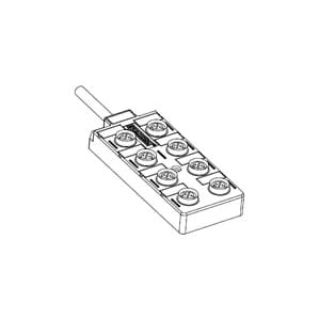

Picture of BTY801P-FBE-10 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
120114-0069
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Woodhead®

Description

Woodhead® Micro-Change® Molded Junction Box, Series: 120114, 10 to 30 VDC, 12 A, 5 Poles, 4 Wires, IP67, Top Mount, NEMA 6, PBT, 5 in Width, 2.13 in Depth

Standards

CSA LR6837 | RoHS Compliant | UL E152210

Features

  • Single keyway
  • Copper alloy metal, gold over nickel plating mating, PVC cable jacket
  • 8 port
  • -20 to 90 deg C temperature rating
  • Straight orientation
  • M12 bus input/output
  • Single I/O per port
  • Parallel functional wiring
  • LED indicator
  • 10 m cable length
  • Molded cable

Specifications

Amperage Rating:12 A
Depth:2.13 in
Enclosure Type:IP67
Material:PBT
Mounting Type:Top
NEMA Rating:NEMA 6
Number of Poles:5
Number of Wires:4
Series:120114
Voltage Rating:10 to 30 VDC
Width:5 in
