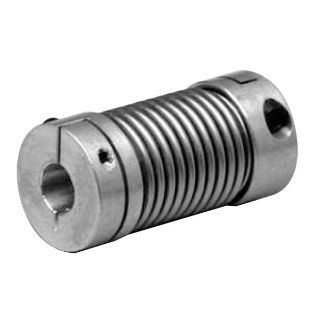

BWC21 CPLG 3MM X 3MM LOV

Lovejoy® 68514476990 BWC Series Clamp Style Standard Bellow Coupling, 3 mm Dia Bore, 15 mm OD, 21 mm OAL, 3.54 in-lb Torque, 15000 rpm Max
Manufacturer: Lovejoy
Manufacturer part number: 68514476990
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Lovejoy®

Type

Clamp Style Standard

Description

The BWC (bellows clamp) Series coupling provides a new range of coupling options with the high torsional stiffness. The higher torsional stiffness provides the benefit of accuracy and repeatability in motion control applications. The BWC Series coupling features aluminum hubs and corrosion-resistant steel bellow. The compact design also offers the benefit of low inertia. The BWC Series also has a torque capacity of up to 89 in-lb, with a maximum bore capacity of 0.748 in diameter. The BWC utilizes clamping style hubs that provide easy installation and removal of the coupling. The bellows design also offers up to 0.016 in of axial misalignment, with low reactionary loading on bearings.
Lovejoy® Bellow Coupling, Clamp Style Standard, Series: BWC Series, 3 mm Bore, 15 mm OD, 21 mm Overall Length, 7 mm Length Through Bore, 3.54 in-lb Torque, 15000 rpm Maximum, 212 deg F, Stainless Steel Bellow/Aluminum Hub

Application

For motion control applications

Standards

ACMA Certified | ECCN EAR99 | EPTDA Approved | FPDA Motion and Control Network Member | Member of Hydraulic Institute | MPTA Standard | NFPA Member | PTDA Approved

Features

  • High torsional stiffness
  • Low reactionary loading
  • No maintenance required
  • Low moment of inertia
  • Without keyway

Specifications

Bore Diameter:3 mm
Country of Origin:DE
Length Through Bore:7 mm
Material:Stainless Steel Bellow/Aluminum Hub
Maximum Speed:15000 rpm
Outside Diameter:15 mm
Overall Length:21 mm
Series:BWC Series
Temperature Rating:212 deg F
Torque Rating:3.54 in-lb
