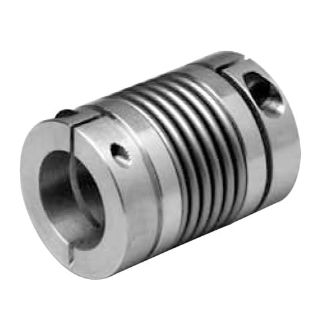

BWLC91 CPLG 20MM X 22MM LOV

The BWLC (bellows clamp) Series coupling specifically addresses higher torque and bore capacities in the area of motion control. The BWLC Series offers the highest amount of torsional stiffness for accuracy and repeatability. The BWLC Series coupling features a corrosion-resistant steel bellow and aluminum or steel hubs. The BWLC Series also has a torque capacity of up to 1328 in-lb, with a maximum bore capacity of 1.574 in diameter. The larger size of the BWLC allows for a greater amount of axial misalignment of 0.02 in, with low reactionary loading on bearings.

Lovejoy® Bellow Coupling, Clamp Style, Series: BWLC Series, 20 mm, 22 mm Bore, 82 mm OD, 91 mm Overall Length, 21.5 mm Length Through Bore, 1328 in-lb Torque, 6800 rpm Maximum, 212 deg F, Stainless Steel Bellow/Aluminum Hub
